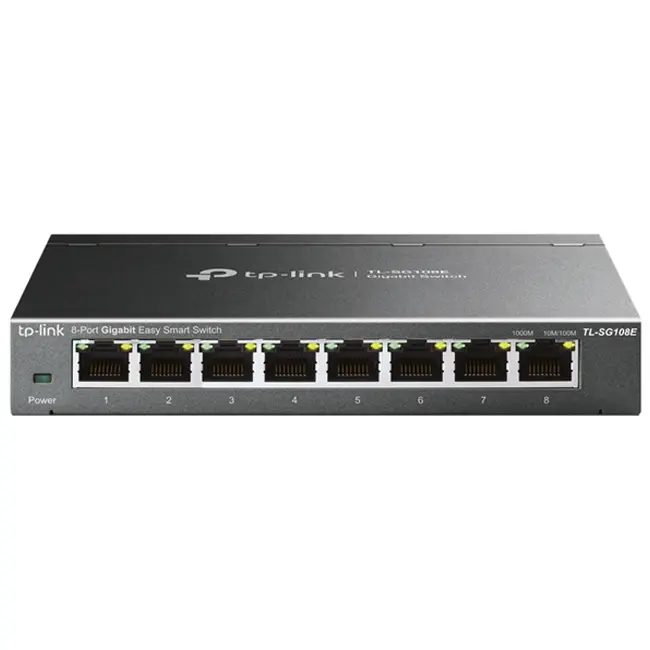

Switch TP-Link TL-SG108E 8 Portas Gigabit Smart Managed

Normas e Protocolos: IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3x IEEE 802.1q IEEE 802.1p

Interface:

• 8 x Portas RJ45 10/100/1000Mbps
• AUTO Negociação/AUTO MDI/MDIX

Rede:

• 10BASE-T: UTP category 34 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-T: UTP category 5 5e 6 or above cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)

Dimensões Físicas: 158*101*25 mm (W X D X H)

Tabela MAC Adress: 8K

Packet Buffer Memory: 2Mb

Packet Forwarding Rate: 11.9Mpps

Jumbo Frame: 16KB

Quality of Service:

• Support Port Based/802.1p Based priority
• Support 4 priority queues
• Rate Limit
• Storm Control

Funções L2:

• IGMP Snooping
• Link Aggregation
• Port Mirroring
• Cable Diagnostics
• Loop Prevention

VLAN:

• Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
• MTU/Port/Tag VLAN

Método de Transmissão: Store-And-Forward

Certificações: FCC CE RoHS

Conteúdo da Embalagem:

• TL-SG108E
• Cabo de alimentação
• Guia de instalação
• CD de recursos
• Pés de borracha
