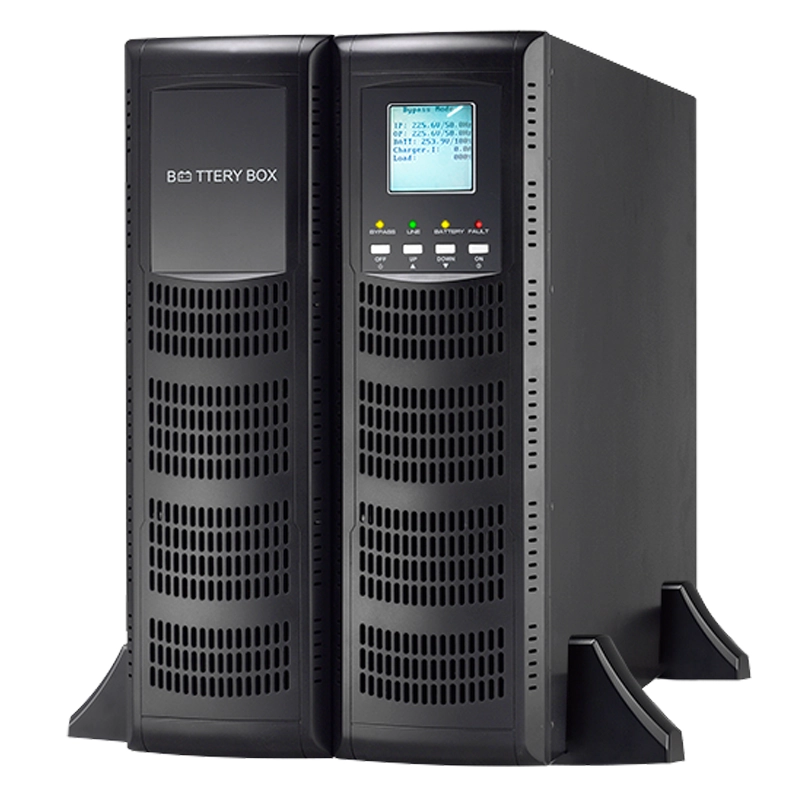

UPS 10KVA Wintech Online, RM/TWR + Banco de Baterias (2Pcs) WIN-10KVAGX9 UPS Wintech 6000VA / 6KVA Online, RM/TWR + Banco de Baterias (2Pcs) WIN-6KVAGX9

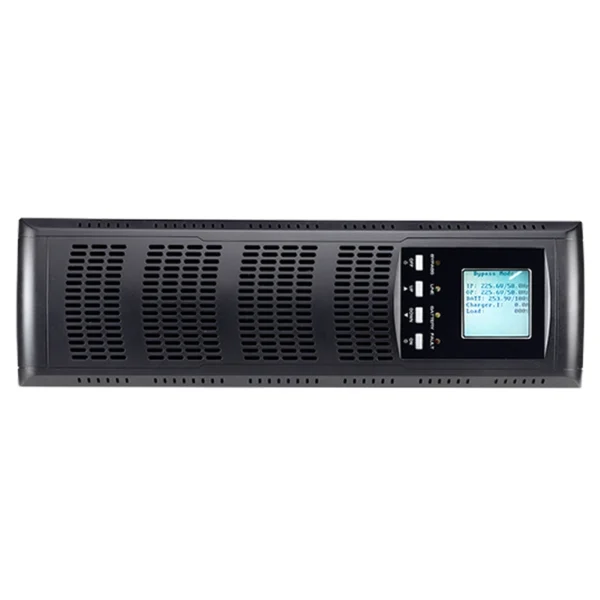

UPS Wintech 6000VA/6KVA Online, RM/TWR + Banco de Baterias (2Pcs)

REF: WIN-6KVAGX9

Marca: Wintech

1.464.378,20Kz c/IVA

Ad. ao Favoritos

+ Info Via Whatsapp

REF: WIN-6KVAGX9 Categorias UPS & Power Station, Mat. Eletrico & Energias Renovaveis

Descrição
Especificações

Descrição

UPS 6KVA Wintech Online, RM/TWR + Banco de Baterias (2Pcs) – WIN-6KVAGX9

Esta UPS Wintech 6000VA /6KVA usa baterias do tipo 12V/7Ah, com uma voltagem de saída de 208/220/230/240 VAC, mais de 2 saídas para a conexão a corrente a uma frequência de 50/60 Hz.

Compatível com o Windows 7/8/vista/xp/2000/2003, Linux e Mac, Cabo USB e RS-232 Serial incluído

Placa SNMP Web Card para gestão e monitoramento em rede.

A MultiTek destaca ainda as Principais Características desta UPS Wintech 6000VA /6KVA:

Tecnologia On-line dupla conversão
Intuitiva interface com o usuário, através do display de LCD frontal para fácil visualização do status do no-break
Maior capacidade de carga total em relação à maioria dos equipamentos de sua categoria com fator de potência 0.8
Bypass interno automático que garante continuidade no fornecimento de energia em caso de falha interna do no-break
Configuração de entrada múltipla (1:1 e 3:1) para modelos 10kVA e 20kVA
Portas de comunicação seriais (USB ou RS232) ou através de rede com placas opcionais Network-MS, ModBus-MS ou Relay-MS
Compatível com ambientes virtualizados (VMware, Microsoft Hyper-V, Citrix e Redhat)
Aprovação CE por agência externa (Relatório CB da TUV)

Especificações:

COR	PRETO
POTÊNCIA (W)	5400 W
CAPACIDADE	6000VA

MODEL		WIN-6KVAGX9	WIN-6KVAGX9	WIN-10KVAGX9	WIN-10KVAGX9
CAPACITY		6000 VA / 5400 W		10000 VA / 9000 W
PHASE		Single phase with ground
INPUT
Voltage Range		110-300 VAC at 50% load; 176 -300 VAC at 100% load
Nominal Voltage		200/208/220/230/240 VAC
Frequency Range		46~54 Hz or 56~64 Hz
Power Factor		≧ 0.99 @ 100% load
OUTPUT
AC Voltage Regulation		± 1%	± 3%	± 1%	± 3%
Frequency Range (Batt. Mode)		50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz
Nominal Voltage		200/208/220/230/240 VAC	104 VAC x 2 / 208 VAC or 110 VAC x 2 / 220 VAC or 115 VAC x 2 / 230 VAC or 120 VAC x 2 / 240 VAC	200/208/220/230/240 VAC	104 VAC x 2 / 208 VAC or 110 VAC x 2 / 220 VAC or 115 VAC x 2 / 230 VAC or 120 VAC x 2 / 240 VAC
Current Crest Ratio		3:1 (max.)
Harmonic Distortion		≦ 2% THD (Linear Load); ≦ 4% THD (Non-linear Load)	≦ 3.5% THD (Linear Load); ≦ 7% THD (Non-linear Load)	≦ 2% THD (Linear Load); ≦ 4% THD (Non-linear Load)	≦ 3.5% THD (Linear Load); ≦ 7% THD (Non-linear Load)
Frequency Range (Synchronized Range)		46~54 Hz or 56~64 Hz
TRANSFER TIME
Battery mode to Line mode		Zero
Bypass to Inverter		Zero
Inverter to Bypass		Zero
Line mode to Battery mode		Zero
Waveform (Batt. Mode)		Pure Sine Wave
EFFICIENCY
Battery Mode		88%	82%	88%	82%
ECO Mode		96%	87%	96%	87%
AC Mode		91%	85%	91%	85%
BATTERY
Long-run Model	Battery Type & Numbers	Depending on applications
Long-run Model	Charging Current (max.)	4A
Long-run Model	Float Charging Voltage	273 VDC (based on battery numbers at 20 pcs)
Standard Model	Battery Type	12 V / 7 AH		12 V / 9 AH
Standard Model	Charging Current (max.)	1A
Standard Model	Float Charging Voltage	273 VDC (based on battery numbers at 20 pcs)
Standard Model	Numbers	20 (18-20 pcs adjustable)
Standard Model	Typical Recharge Time	7 hours recover to 90% capacity		9 hours recover to 90% capacity
INDICATORS
LCD Panel		UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault conditions
ALARM
Battery Mode		Sounding every 4 seconds
Low Battery		Sounding every second
Overload		Sounding twice every second
Fault		Continuously sounding
ENVIRONMENT
Operating Humidity		0~95% RH @ 0- 40°C (non-condensing)
Noise Level		Less than 58dB @ 1 Meter		Less than 60dB @ 1 Meter
PHYSICAL
Standard Model	Dimension, D X W X H (mm)	UPS unit: 606 x 438 x 133 [3U]; Battery pack: 606X438 X133 [3U]	UPS unit: 606 x 438 x 133 [3U]; Battery pack: 606X438 X133 [3U]; ISO bank: 606 x 438 x 133 [3U]	UPS unit: 686 x 438 x 133 [3U]; Battery pack: 606 x 438 x 133 [3U]	UPS unit: 686 x 438 x 133 [3U]; Battery pack: 606 x 438 x 133 [3U]; ISO bank: 686 x 438 x 133 [3U]
Standard Model	Net Weight (kgs)	UPS unit: 20; Battery pack: 58	UPS unit: 20; Battery pack: 58/ ISO bank: 61	UPS unit: 23.5; Battery pack: 65	UPS unit: 23.5; Battery pack: 65 ; ISO bank: 90
Long-run Model	Dimension, D X W X H (mm)	606 x 438 x 133 [3U]	UPS unit: 606 x 438 x 133 [3U]; ISO bank: 606 x 438 x 133 [3U]	686 x 438 x 133 [3U]	UPS unit: 606 x 438 x 133 [3U]; ISO bank: 606 x 438 x 133 [3U]
Long-run Model	Net Weight (kgs)	20	UPS unit: 20; ISO bank: 61	23.5	UPS unit: 23.5; ISO bank: 90
MANAGEMENT
Optional SNMP		Power management from SNMP manager and web browser
Smart RS-232/USB		Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7/8/10, Linux, and MAC
